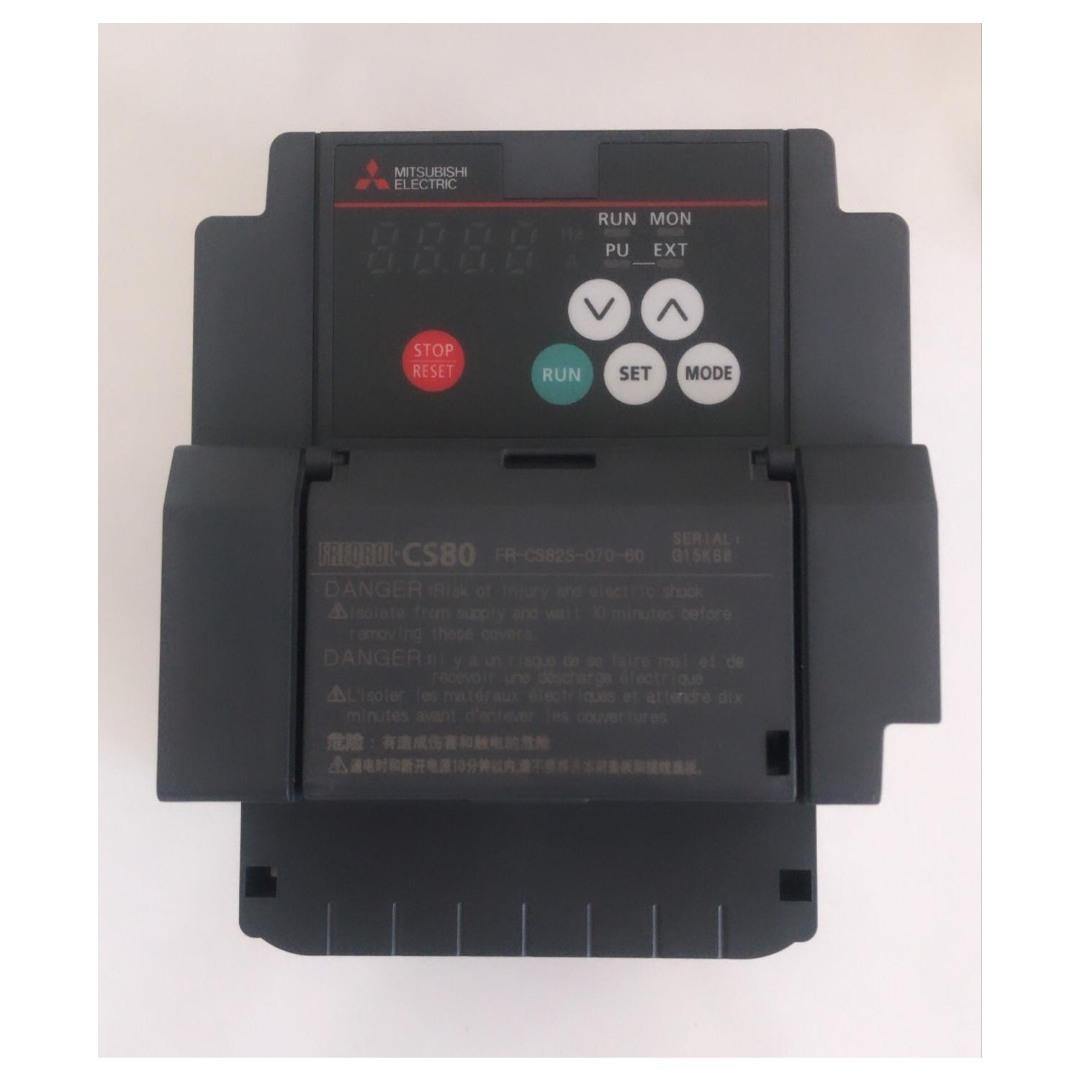

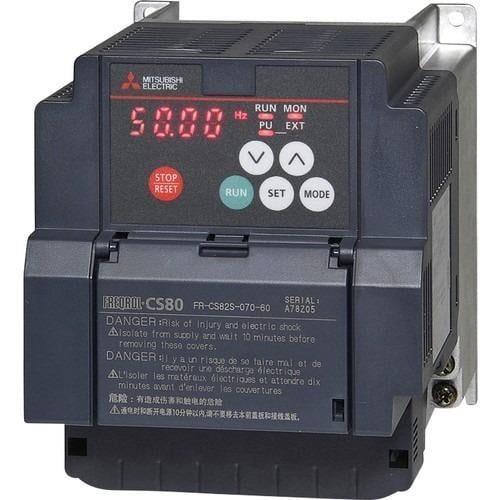

Mitsubishi FR-CS82S-070-60 1,5 kW INVERTER
Mitsubishi FR-CS82S-070-60 1,5 kW INVERTER
Mitsubishi FR-CS82S-070-60 1,5 kW INVERTER

Mitsubishi FR-CS82S-070-60 1,5 kW INVERTER

Fiyat : ₺6.495,39(KDV Dahil)
Favorilere Ekle
Gelince Haber Ver

Adet

Artır Azalt

FA-Inverter: Inverter

Series FR-CS80 SERIES
Type FR-CS82 COMPACT INVERTER
Minimum Rated Voltage (V) 200
Min. Permissible Voltage (V) 170
Maximum Rated Voltage (V) 240
Max. Permissible Voltage (V) 264
Current Type AC
Phases 1
Rated Output Current ND (A) 7
Rated Motor Capacity ND (kW) 1,5
Control Method ADVANCED MAGN. FLUX VEC. CTRL
Motor Type INDUCTION MOTOR
Integrated EMC Filter NO
Safe Torque Off (STO) NO
Regenerative (4Q) NO
Display FR-LU08
PLC Function NO
Integrated Analogue Outputs 0
RS-485 1
Power Loss ND (W) 70
Frequency Range (Hz) 0,2–400
Integrated DC Choke NO
Display Type 4 DIGITS LED
Integrated Digital Inputs 5
Digital Outputs (Transistor) 1
Digital Outputs (Relay) 0
Integrated Analogue Inputs 2
IO Type of Terminal Block SPRING CLAMP
Expandable YES
USB NO
Ethernet Port NO
Built-In Network MODBUS-RTU
Leakage Current (mA) 1
Protection Class IP20
